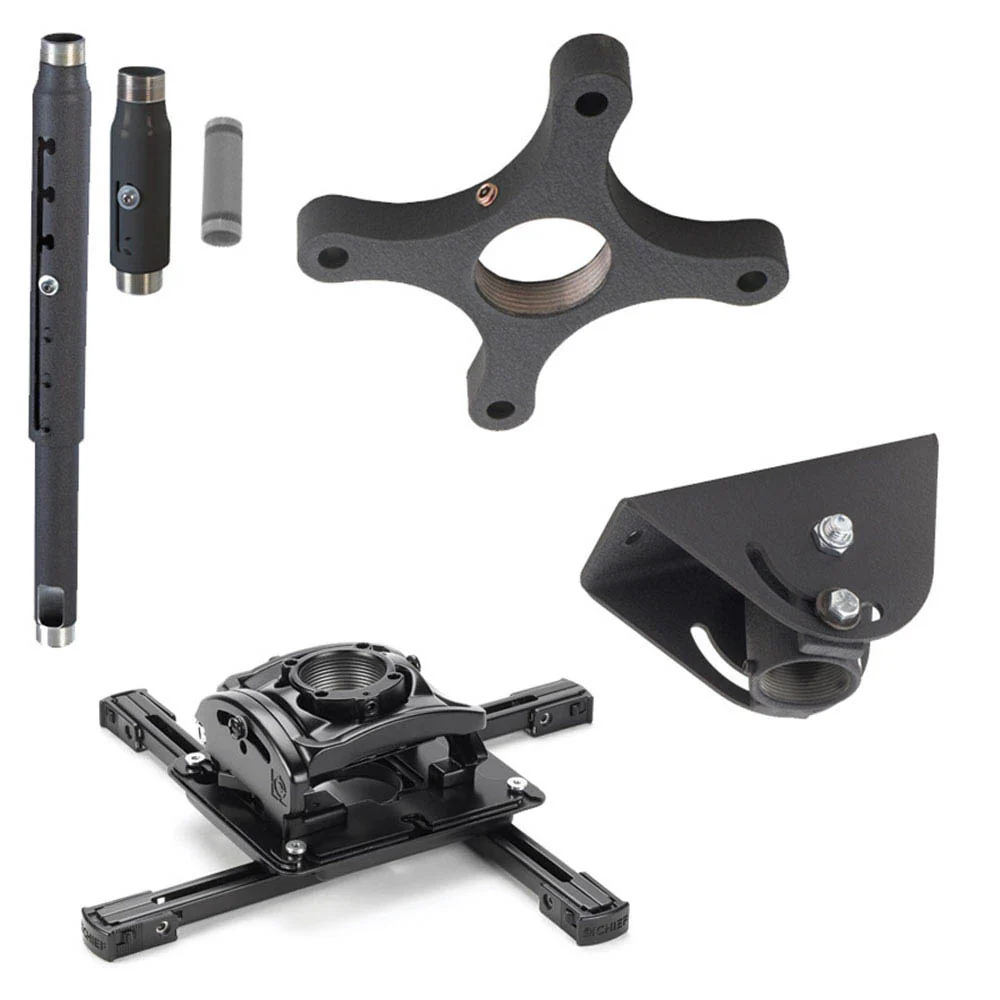

Chief RPMA357 Projector Mount Kit w/ Micro Adjustments for Epson 5050UB / 5050UBe / 5050

1.) The Projector Mount

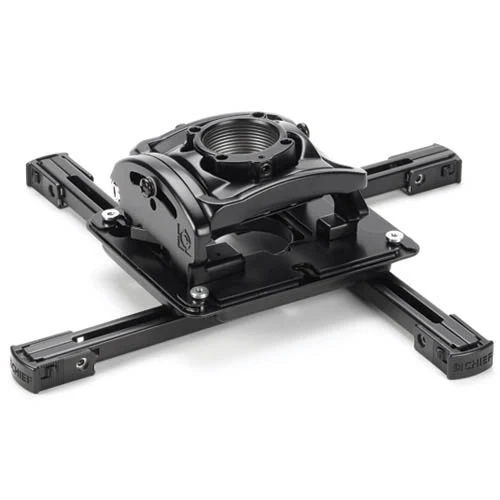

RPMA357 Projector Mount

Features

• Microzone Adjustments make projector registration fast and precise (including flush mount installations)
• Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
• Quick connect/disconnect for convenient lamp and filter access on most projectors
• Maintains registration when disconnected and doesn't affect preset adjustments
• Cable management without additional accessories
• Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
• Same great features as the RPA Series, including independent roll, pitch and yaw, integrated cable management, and All-Points Security
• Speed-Connect line of accessories further reduce installation time

RPM Installation Manual

2.) Ceiling Plate Options

CMA101 Designer Ceiling Plate

Features

• Attractive solution for basic installations
• Easy and versatile installation using all 4 holes or 2 opposing holes
• The 4" x 4" mounting pattern allows use of 0.38" mounting bolts
• Available in black, silver or white

- OR -

CMA395 Angled Ceiling Plate

Perfect for projector installations on an angled ceiling.

Features

• Adjusts from -5‚ ° to +95‚ ° to level a mount from an angled ceiling
• Three slotted mounting holes allow horizontal and vertical adjustment for a precise installation
• Compatible with 1.5" NPT threaded extension column

  Specifications

  Certifications:	UL Listed
  Color:	Black
  Overall Dimensions (H x W x D):	4.4" x 3.4" x 7.5" (111 x 86 x 191 mm)
  Shipping Weight:	6.00 lbs
  Weight Capacity:	500 lbs (226.8 kg)

CMA395 Installation Manual

CMA395 Technical Drawing

3.) Extension Column Options

3" Fixed Extension Column

6-9" Adjustable Extension Column

9-12" Adjustable Extension Column
