Kestrel Tab-Tension 3 Series

The Kestrel Tab-Tension 3 is an electric floor-rising projection screen that is an attractive centerpiece for home theater or high-level conference rooms. Its tab-tension design maintains a flat and taut front projection surface to provide a ripple-free image suitable for ultra-short throw projectors.

The Kestrel Tab-Tension 3 utilizes a “scissor-backed” cross risers to raise and lower the screen’s material. It is the ideal alternative solution for environments where wall/ceiling installations are not practical.

The housing is of aluminum construction, is moisture resistant and available in a black housing. It includes handheld remote controls, wall box controller and a 12v trigger.


Screen Material

• CineWhite® 1.1 Gain front projection material for rooms with controlled lighting
• Ultra-wide viewing angle allows viewers to see clear picture of equal brightness from any angle
• ISF Certified for accurate color reproduction – An Industry standard for high-fidelity video display systems
• Black-backing eliminates light penetration to prevent picture degradation
• Compatible with ultra/short, and standard (long) throw projectors
• Available in the following diagonal sizes: 122″, 135″, 150″ and 183″ in 16:9 aspect ratio

Design and Operation

• Rises and lowers by our motorized precision “scissor-backed” cross spring risers
• Heavy-duty aluminum black housing is moisture resistant
• Free-standing projector screen appears and disappears from a touch of a button
• Plug & Play design with built-in low voltage control system, no hardwire installation required

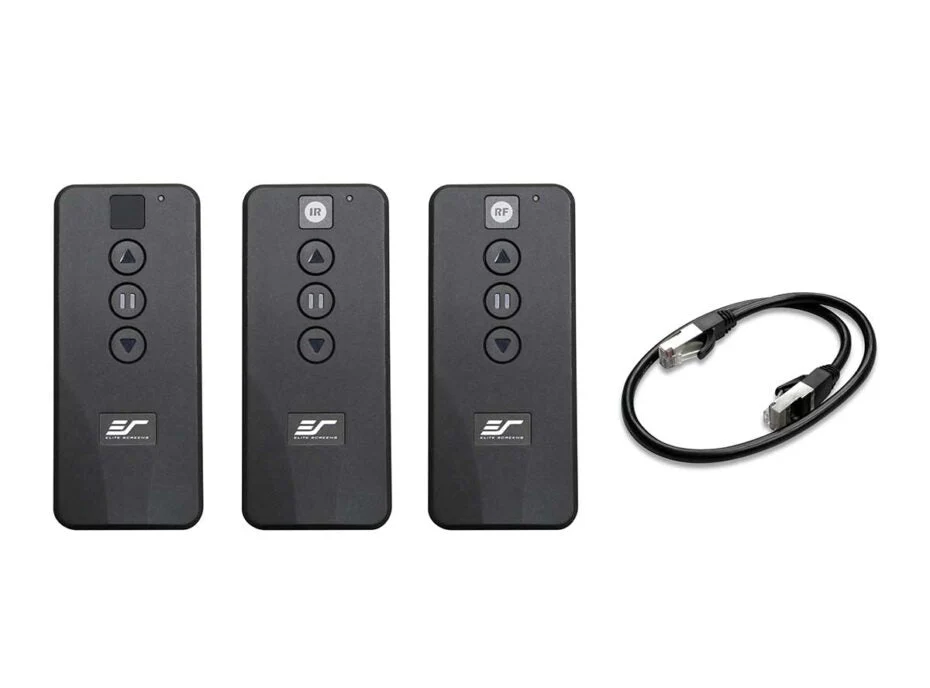

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical rise position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations


Dimensions Tables

• Dimensions Table – H Type (PDF)
• Dimensions Table 150″ and Above – H Type (PDF)
• Dimensions Table (PDF) – J Type – DISCONTINUED

User Guides

• User Guide – RC1 (PDF)
• User Guide 150″ and Above – RC1 (PDF)
• User Guide (PDF) – J Type – DISCONTINUED

Comparison Tables

• Electric Floor-Rising Screens

Others

• Screen Material Care Sheet
• Electric Screens Accessories Chart
• Product Cut Sheet (PDF)
