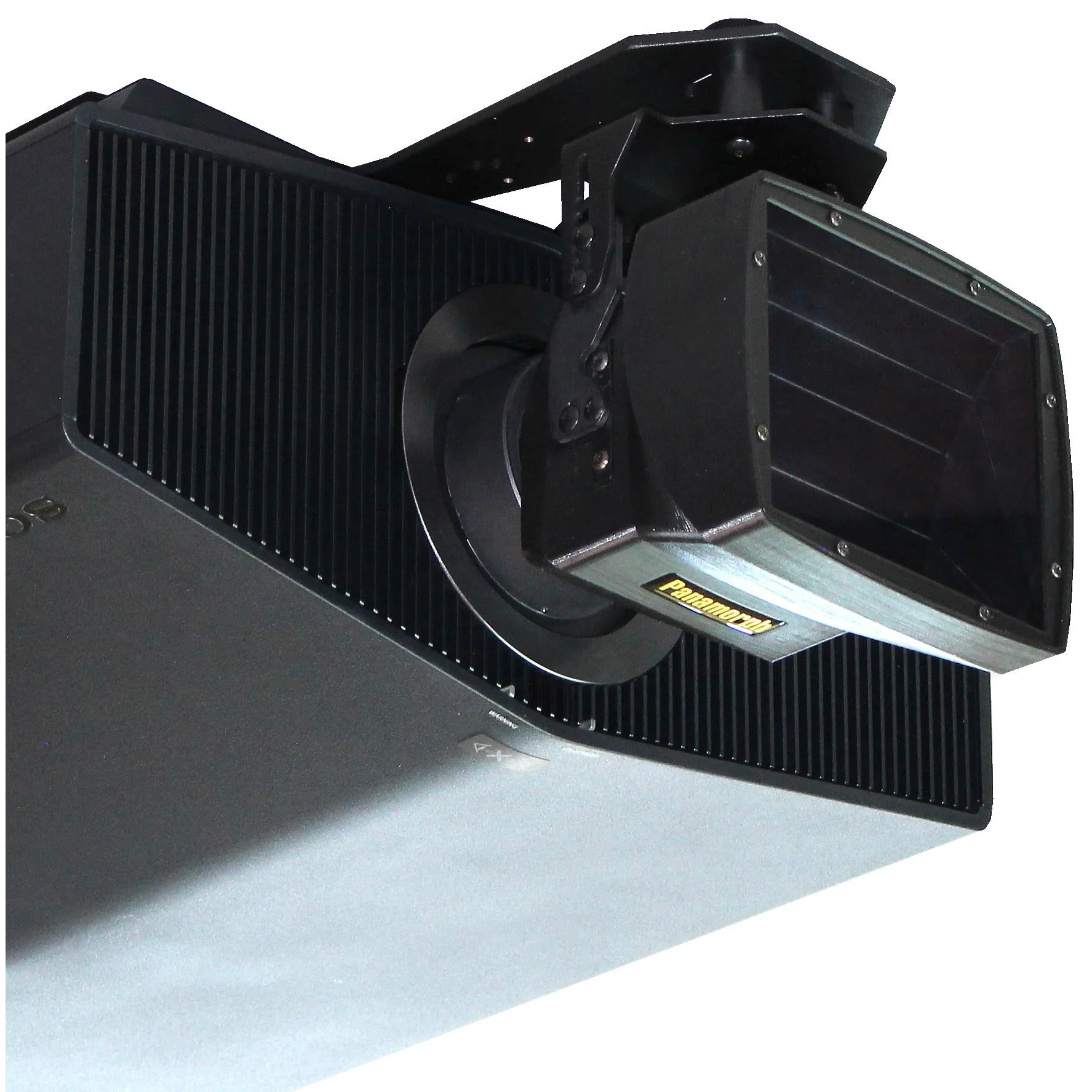

Panamorph Alpha+XM3 Anamorphic Lens with XM3 Attachment System

Alpha Universal Cinema-Format Conversion Lens (includes XM3 Attachment Kit)

The Alpha is primarily designed for Sony projectors XW5100ES (Bravia 7), XW6100ES (Bravia 8) and XW8100ES (Bravia 9). The attachment system is included with the lens. Remember that the Alpha increases the image width by 10% so please factor that into your theater calculations.

• Over 2 million more pixels on your screen for stunning detail and 30% higher brightness when showing content in the 2.4:1 format.
• Sealed, precision all-glass optical system supports distortion-free 8K projection. The f irst of its kind in the history of theater (patents pending).
• Instant aspect ratio changes. No need for lens adjustments in shift/zoom/focus.
• Optimized for vertical position of the projector in typical home theaters from -6″ to +16″ from screen top and +/- 4” from screen horizontal center (greater with higher throw ratios).
• Optional UltraWide 2.4:1 mode for 16:9 content to fill a cinema-format 2.4:1 screen. ? Universal ceiling- or shelf-mount attachment system for all compatible projectors. Likely compatibility with future projectors (not guaranteed, new mount may be required).
• Weight: Lens and bracket: 4.7 pounds (2.14Kg). XM3 plate: 5 pounds (1.8Kg).
• Dimensions: Lens only: 6.6” (168mm) W X 5.6” (140mm) H X 5.9” (150mm
