4K HDR over HDBaseT Extension System w/ Control and Bi-Directional PoE

The HCE III Tx/Rx HDBaseT? extension system offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) and 4K@60Hz with 4:4:4 chroma sampling. Featuring PureLink's proprietary Pr?cis codec, a light compression technology, the HCE III can transport Ultra HD/4K, multi-channel audio, and High Dynamic Range (10 bits support) content over a single CATx cable.

The HCE III provides HDMI extension up to 130 feet (40 meters) at Ultra HD/4K and up to 230 ft. (70 meters) at 1080p over category cable with embedded multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoE ? all with zero loss and zero noise. The HCE III Tx/Rx also supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LCPM (up to 192 kHz). Additionally, the low profile "slim box" enclosure design make the HCE III ideal for limited space installation environments, such as behind flat panel displays and video walls.

Key Features:

• Supports resolutions up to 4K@60Hz (4:4:4)
• Supports HDR (High Dynamic Range) formats
• HDCP 2.2 compliant
• Extends HDMI up to 130 ft. (40m) at Ultra HD/4K and up to 230 ft. (70m) at 1080p
• Pr?cis codec - visually lossless signal transmission
• High bandwidth support - up to 18 Gbps
• Supports BT.2020 color representation
• Bi-drectional PoE (Power over Ethernet)
• Bi-directional RS232 & IR extension
• CEC pass-through

HDMI over HDBaseT Extension Systems Comparison Chart
Features	Model No.
	HTE III	HCE III	HTR	HTE	HCE II	VIP-100 II	VIP-200H	VIP-300H-U
Distance (ft)	330	230	330	330	230	390	590	390
HDMI Version	2.0	2.0	1.4	1.4	1.4	1.3	1.3	1.4
HDCP Version	2.2	2.2	2.2	2.2	2.2	1.3	1.3	2.2
Ultra HD 4K (4K60 4:4:4)	General Specification
Power	Input: AC100 ? 240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	24W (max)
Operational Temperature	32? ~ 117? F (0? to 47? C)
Storage Temperature	- 4? ~ 140? F (-20? to 60? C)
Humidity	0 ~ 90% non-condensing
MTBF	50,000 hours
Dimensions (W x D x H)	7.2'' x 3.5'' x 0.7'' (183 x 88 x 18mm)
Shipping Dimensions (with cover box)	TBD
Weight	1.0 lbs (0.45 kg)
Shipping Weight (with accessories and cover box)	TBD
Tecnnical Specification
HDMI Version	HDMI 2.0
HDCP Compliance	HDCP 2.2
Data Rate	18 Gbps
Resolution	Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0)
HDMI Audio	LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital, Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1
Transmitter	Inputs: 1 x HDMI Type A [19-pin female] 1 x IR input [3.5mm stereo mini-jack] 1 x RS232 [Phoenix connector] 1 x Firmware [Mini USB] Outputs: 1 x HDBaseT [RJ45] 1 x IR output [3.5mm stereo mini-jack]

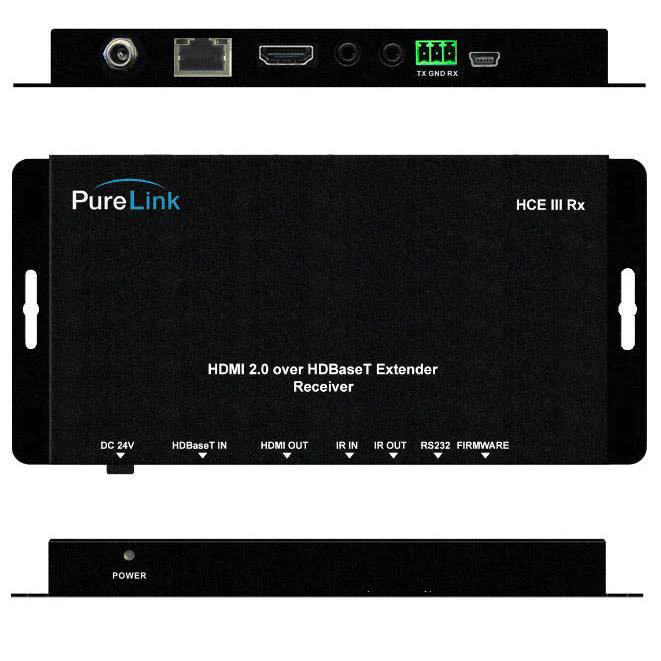

Receiver	Inputs: 1 x HDBaseT [RJ45] 1 x IR input [3.5mm stereo mini-jack] 1 x RS232 [Phoenix connector] 1 x Firmware [Mini USB] Outputs: 1 x HDMI Type A [19-pin female] 1 x IR input [3.5mm stereo mini-jack]
