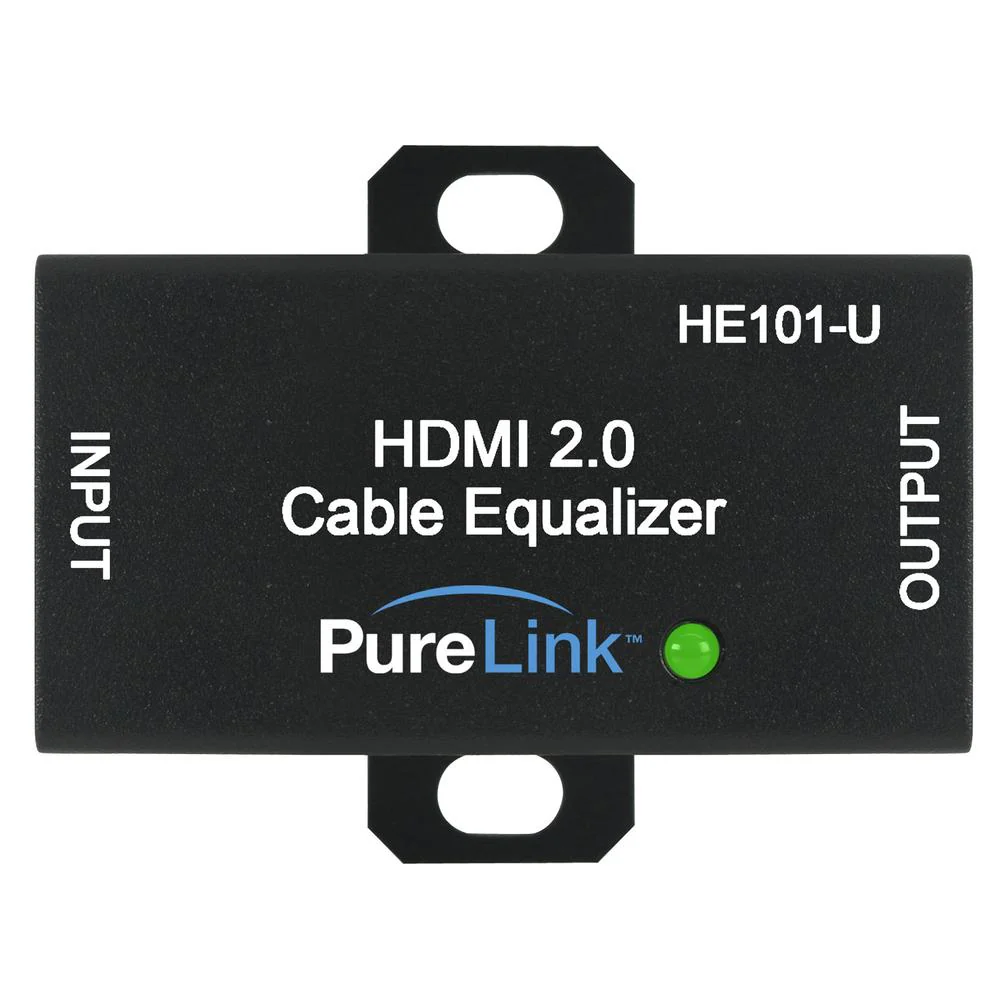

PureLink HE101-U HDMI 2.0 4K/60 4:4:4, HDCP 2.2 Signal Equalizer—
$149.99
The Story
HDMI 2.0 4K/60 4:4:4, HDCP 2.2 Signal Equalizer
The HE101-U Signal Equalizer provides
a convenient installation solution for extending and amplifying
high-bandwidth HDMI 2.0 signals using standard HDMI cables in a home or
office environment.
The HE101-U can
be attached between long cable runs - up to 10 meters (5 meters each
from the input and output source) - supporting full 4K@60Hz (4:4:4)
resolutions. Using proprietary signal regeneration technology, the
HE101-U automatically provides the necessary active equalization to
ensure optimal image quality over longer distances. Together with HDCP
2.2 compliance, as well as the ability to draw power directlty from the
HDMI source, the HE101-U combines easy integration with seamless and
reliable performance.
Key Features:
- Supports cable lengths up to 33 ft. (10 m) at 4K/60 (4:4:4) resolutions, up to 66 ft. (20 m) at 4K/60 (4:2:0) resolutions, and up to 132 ft. (40 m) at resolutions up to 1080p
- High bandwith support - up to 18 Gbps
- HDCP 2.2 compliance
- Proprietary signal re-generation & repeating technology enables maximum transmission distance
- Draws power directly from the HDMI source(Micro-USB power injection optional)
- Seamless, easy integration
| General Technical Specification of HE101-U | |
| Input type | HDMI Single Link , 1 port |
| Output type | HDMI Single Link , 1 port |
| Supported Input/Output Resolution |
Ultra HD/4K Up to 4096 x 2160 @ 50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0) |
| Connector type | HDMI 19 Pin Female Micro USB power jack |
| Supported format | HDMI 2.0 |
| HDCP Compliant | Yes, Pass thru, HDCP 2.2 |
| Multi-channel Audio | Yes, Pass thru |
| HDR support | Yes, Pass thru |
| CEC support | Yes, Pass thru |
| EDID | Pass thru |
| Power | HDMI (via HDMI pin# 18) or Micro USB DC +5V , 2A, Max 10W * Micro USB is an optional, does not come with the unit |
| Dimension | 1.1? x 2.0? x 0.8? (28 x 52 x 21 mm) |
| Weight | 0.13 Lbs | 60g |
