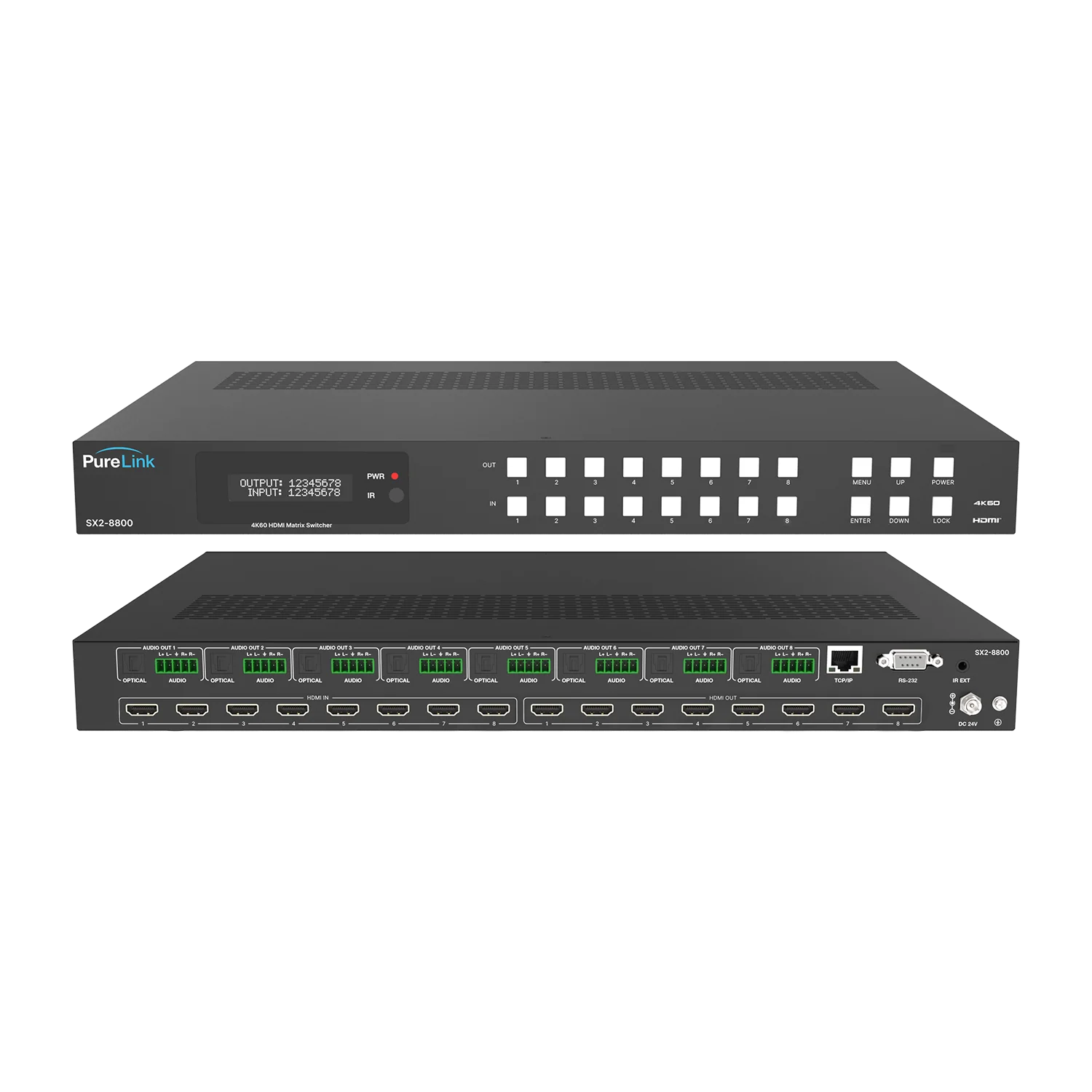

8X8 4K HDMI 2.0b MATRIX SWITCHER WITH HDCP 2.2

Key Features

• HDMI 2.0b / HDCP 2.2
• 4K60 4:4:4 3840×2160-60P and 4096×2160-60P
• SDR Seamless Switching
• HDR10, HDR10+, HLG 10, Dolby Vision
• MPEG-H Audio
• Simple Video Wall creation
• Each output with independent scaling engine
• Image rotation independent for each output
• HDMI audio extract – balanced analog stereo, and multichannel optical
• Audio breakaway and matrix audio on analog and optical outputs
• Complete EDID management independent for each input including user EDID
• Controllable via Front panel, RS232, TCP/IP and IR remote
• CEC control for inputs, and outputs, via web UI and API commands
• Easy preset creation and recall via web UI and API commands
• Control with PureLink’s award winning iCON™, Crestron, Q-SYS, and more


General Technical Specification of SX2-8800
Model	SX2-8800
INPUTS	8 HDMI
OUTPUTS	8 HDMI
RESOLUTION	4K60 Up to 4096 x 2160 @60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0)
DATA RATE	18 Gbps
OPERATING TEMPERATURE	32°F ~ 122°F (0° to 50° C)
STORAGE TEMPERATURE	-4°F ~ 158°F (-20° to 70° C)
HUMIDITY	0 ~ 90% non-condensing
MTBF	95,000 hours
SUPPORTED FORMAT	HDMI 2.0b
COMPLIANCE	HDCP 2.2
WARRANTY	5-Years
DIMENSIONS (W x D x H)	17in x 12in x 2in (431.8mm x 304.8mm x 50.8mm)
PRODUCT WEIGHT	8.8lbs (4kg)
